The essential signal
- Nearly equal input voltages are a result of suitable negative-feedback operation, not a permanent property of an op-amp.
- A voltage follower draws output energy from its supply rather than from an idealized input signal.
- Check output swing, loading and the amplifier’s supported gain before relying on a simple model.
The rule comes after the circuit
Students often meet an op-amp through two convenient assumptions: little current enters the inputs, and the two input voltages are nearly equal. Those assumptions can simplify a calculation enormously, but they are not a substitute for identifying the circuit. The near-equality of input voltages follows from suitable negative feedback while the amplifier operates within its limits. Remove that condition and the shortcut can point to an answer the real device has no way to produce, even when the algebra looks perfectly consistent.[1][2][3]

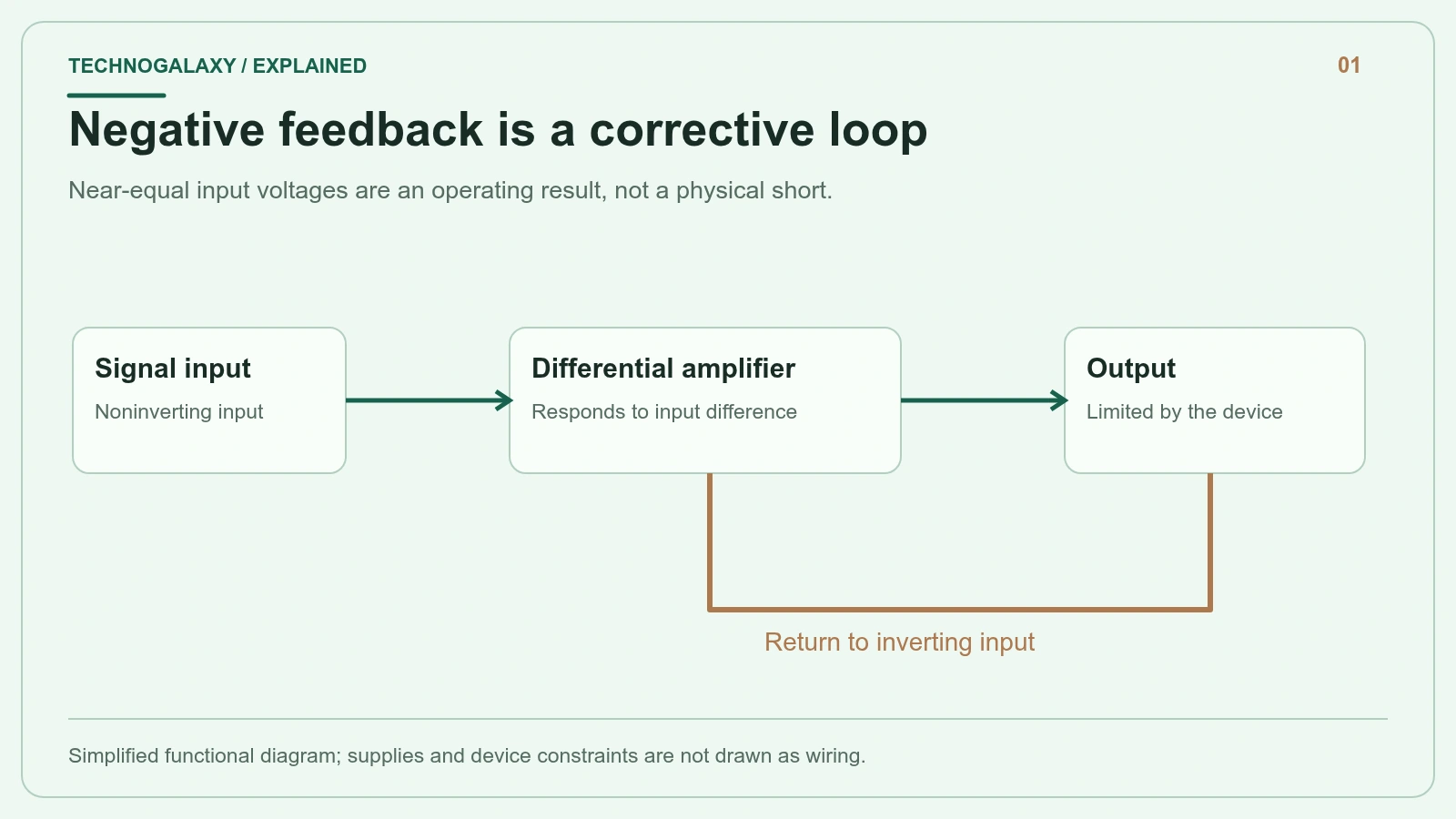

The All About Circuits explanation begins with a useful case: connect the output to the inverting input and apply the signal to the noninverting input. This is a voltage follower. Following that loop shows why the input difference becomes small and why a physical connection between the two input terminals is not required. We will use that case to build a mental model, then examine the limits that the simple picture leaves out. The discussion is educational, not a substitute for a component's data sheet.[1][2][3]
Follow a small change around the loop
Suppose the noninverting input rises slightly. The amplifier's differential action tends to raise the output. Because the output is fed back to the inverting input, that input rises too, reducing the difference that caused the change. The feedback opposes the original error. This is the useful meaning of negative feedback here: the response works toward a balance rather than reinforcing the discrepancy. Drawing the signal path makes the behavior easier to understand than memorizing the word negative as a label on one terminal.[1][2][3]
At equilibrium, the output is close to the applied input in the follower arrangement. It is not necessary to assume an infinitely strong or infinitely accurate device to see the direction of correction. With finite gain, a small remaining input difference supports the output that is needed. The textbook makes this finite-gain relationship explicit. That residual difference is an important clue: the convenient zero-difference assumption is an approximation to the circuit's operation, not an extra physical wire hidden inside the amplifier package.[1][2][3]
Why the input difference can be tiny
In a simplified low-frequency model, output voltage equals open-loop gain multiplied by the difference between the noninverting and inverting input voltages. If the gain is large, only a small difference is needed to produce a moderate output. Negative feedback arranges for that small difference to be established as the circuit settles. This explains both the usefulness of the approximation and its dependence on the amplifier having enough gain and output capability under the conditions being considered in the first place.[1][2][3]

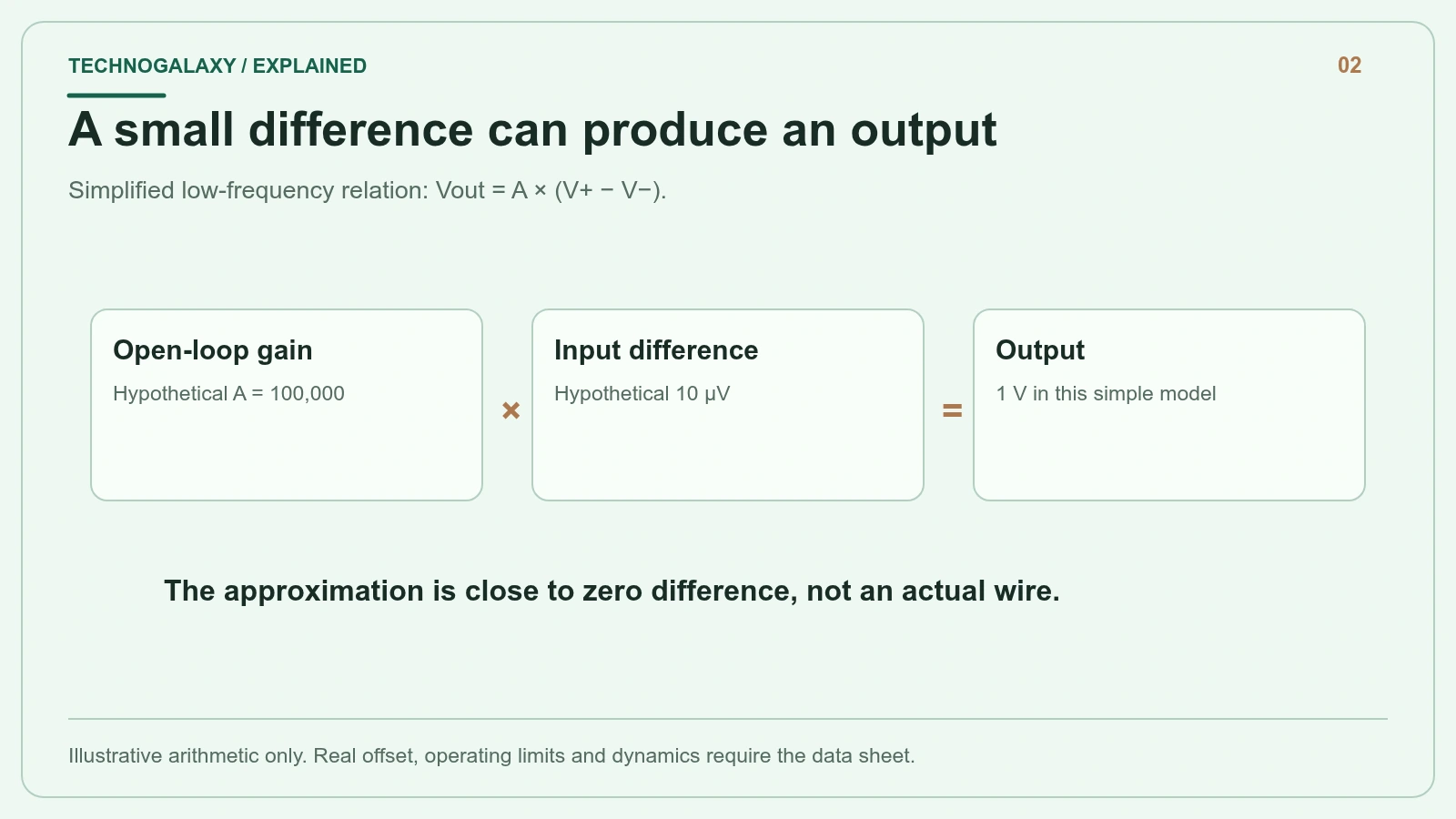

For a hypothetical amplifier with an open-loop gain of 100,000, a 1-volt output corresponds to a 10-microvolt differential input in that simplified model. This is an arithmetic illustration, not a promised specification for a real part. It shows why an engineer may treat the inputs as approximately equal during an initial calculation. It also shows why saying exactly equal is misleading: a finite-gain model still needs an error signal. Precision work must account for real specifications instead of promoting a useful approximation into a universal fact.[1][2][3]
Virtual does not mean electrically shorted
A real short joins two nodes electrically. The virtual-short approximation does not: it describes input voltages that feedback keeps close while the terminals remain separate. That distinction matters when tracing current. You cannot use the approximation to draw an unrestricted current path between the inputs. The amplifier senses a difference, and its output stage responds through the surrounding circuit. Confusing voltage similarity with physical connectivity can produce an incorrect current calculation even when the resulting voltage equations happen to resemble a familiar textbook example.[1][2][3]
The word virtual is therefore a reminder to preserve the circuit's actual topology. Mark which wires exist, which node is a reference and where feedback returns before simplifying anything. If a calculation requires current to cross an input connection that is not present in the schematic, revisit the reasoning. This is especially helpful when moving between a follower and a resistor-feedback circuit. The feedback network may change the relationship between input and output, but it does not turn two distinct signal terminals into a piece of conducting wire.[1][2][3]
A buffer is useful without voltage gain
A voltage follower has a closed-loop voltage gain near one. That does not make it pointless. The textbook describes its high input impedance and low output impedance in the usual model, allowing a signal source to influence a load without directly supplying all the load current. The output's energy comes from the amplifier's power supply. Keeping the supply in the mental picture prevents a common misunderstanding: the follower is not creating output power from a weak input signal merely because the output voltage resembles that signal.[1][2][3]
For an illustrative sensor interface, the question may be whether the signal can drive the next stage without unacceptable loading, rather than whether its voltage needs to be enlarged. A follower can be relevant to that problem, subject to the selected amplifier's limits. Do not assume that every op-amp can drive every load simply because the symbol is drawn as a buffer. Identify the required current and the documented operating conditions. Unity voltage gain describes a voltage relationship; it is not an unlimited-current or zero-error guarantee.[1][2][3]
Output swing can break the approximation
An amplifier cannot produce an arbitrary output beyond the range supported by its supplies and output stage. Both the textbook and TI's specifications guide discuss output-voltage limits. Real devices may stop short of one or both supply rails, and the available swing depends on conditions such as loading. Once the output reaches a limit, the feedback loop may no longer be able to reduce the input difference as the ideal calculation assumes. The inputs can then differ substantially without contradicting the device's actual behavior.[1][2][3]

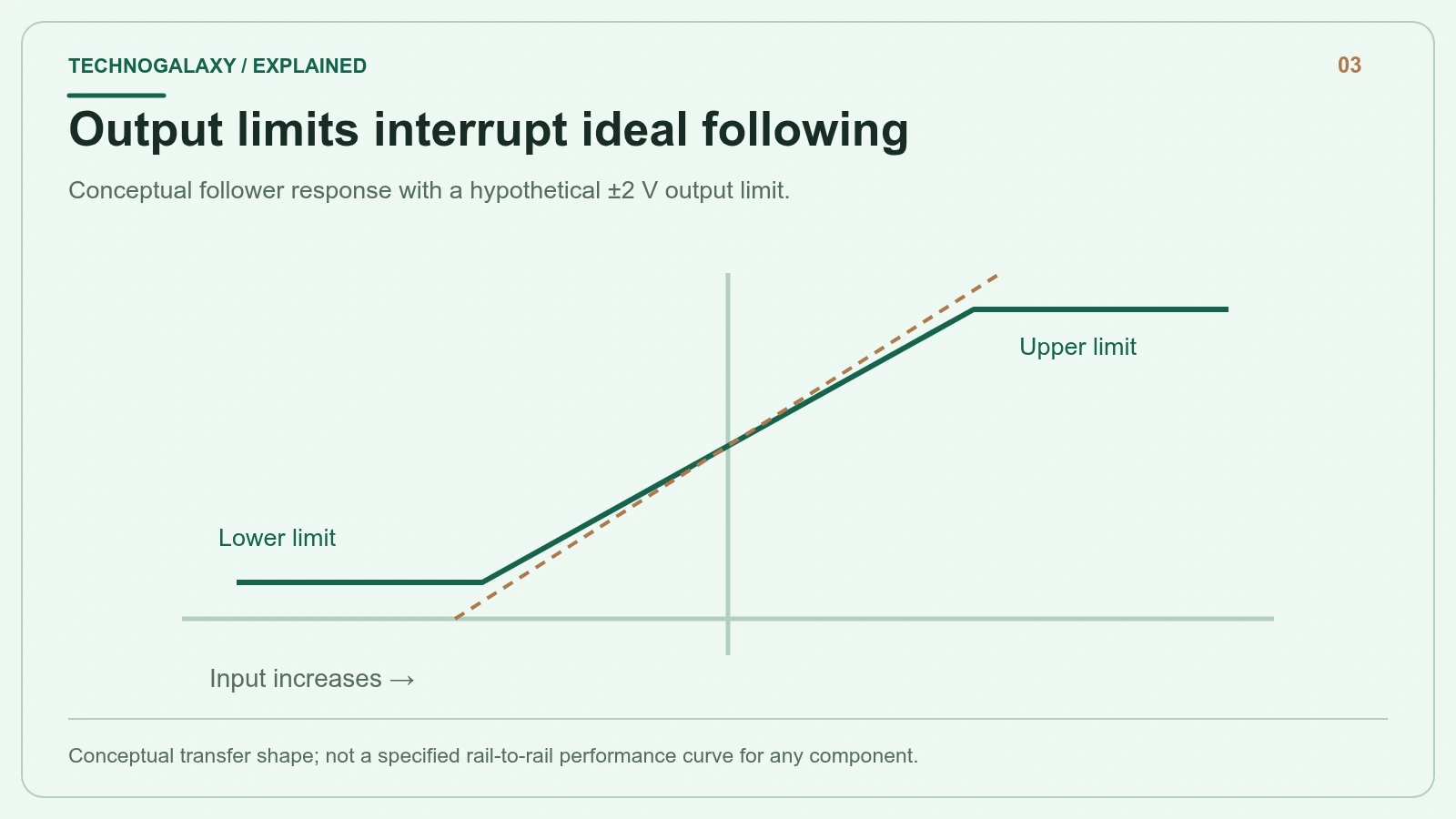

Consider a hypothetical follower asked to reproduce a voltage outside its documented output range. An ideal equation still says that output should equal input, but the real amplifier has reached a constraint. The correct response is to identify that constraint, not to assume the virtual-short rule forces the impossible voltage into existence. Keep supply values and required signal extremes visible on the same worksheet. This simple habit makes it easier to distinguish a valid linear operating case from one that needs a different device or circuit arrangement.[1][2][3]
Rail-to-rail still needs its conditions
Rail-to-rail is useful descriptive language, but it is not a replacement for the detailed input and output specifications. TI explains that output swing is limited by the output structure and the load being driven. A data-sheet value should therefore be read with its test conditions, rather than converted into a claim that the output is exactly equal to either rail at every current. The relevant question is how closely the chosen part can approach the required voltage under the intended conditions, not whether the marketing phrase appears.[1][2][3]
Input common-mode range is another specification to check separately from output swing. The input signal and the requested output may each be within the supply voltages yet still need a closer device-specific review. Rather than collecting a list of reassuring adjectives, make a table of the required ranges and the documented limits. That table should distinguish input constraints from output constraints. Treating them as separate questions keeps a valid observation about one part of the amplifier from becoming an unsupported assumption about the rest of the circuit.[1][2][3]
Unity gain is not supported by every part

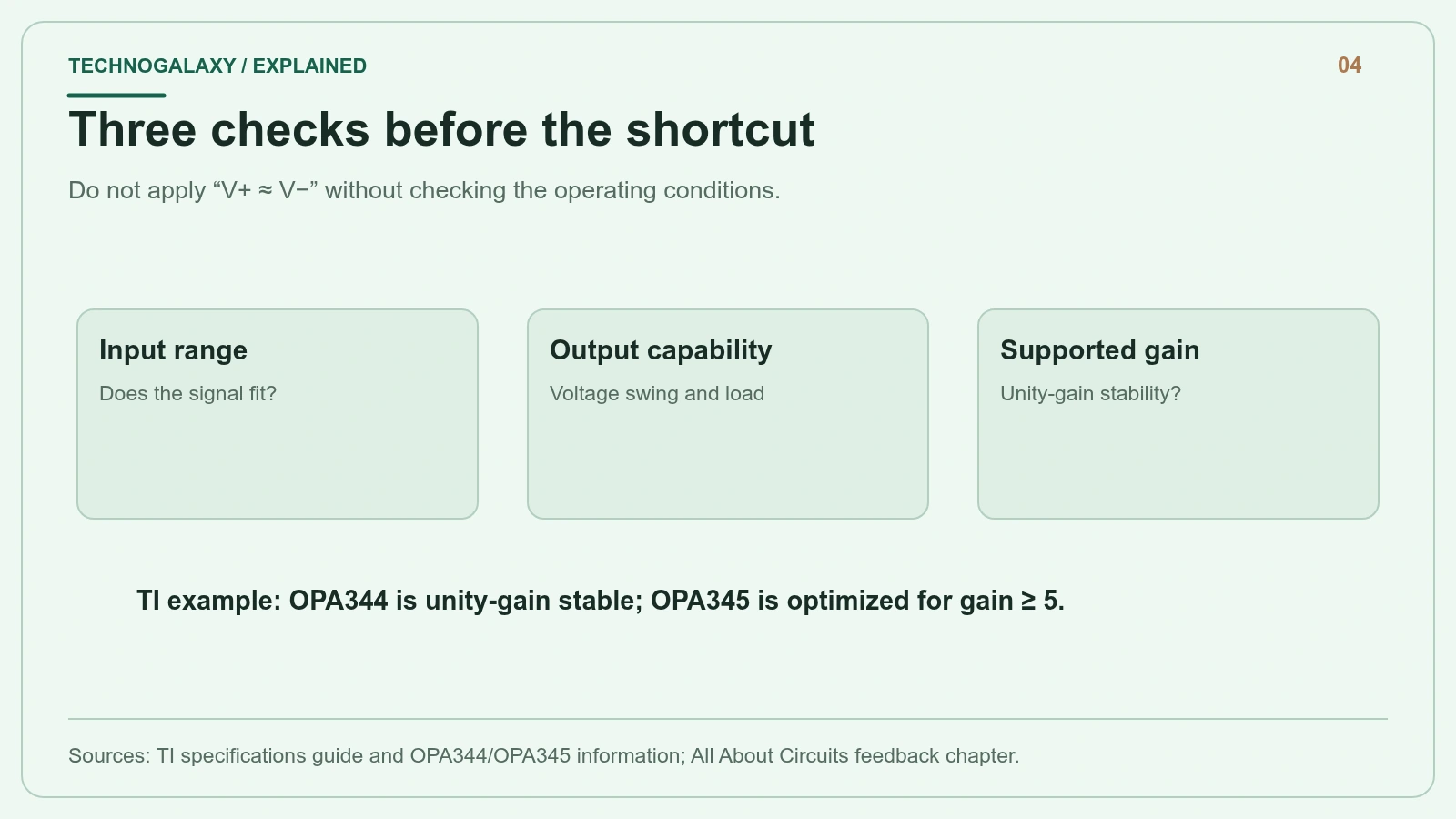

A follower is a good teaching circuit, but it should not be used with an arbitrary amplifier on the assumption that lower gain is always easier. TI's OPA344 product information gives a concrete distinction: the OPA344 is unity-gain stable, while the OPA345 is optimized for gains of at least five. These examples illustrate why the supported closed-loop configuration belongs in part selection. They are not a recommendation to use either device without checking its full data sheet and the requirements of the actual application.[1][2][3]
When reading an amplifier specification, separate open-loop gain, intended closed-loop gain and the conditions under which the circuit is stable. They are related ideas, but they are not interchangeable labels. An initial DC calculation can look sensible while overlooking a configuration requirement. For a learning project, choose an example explicitly supported by the manufacturer and document why it is appropriate. This is more instructive than substituting an available part and interpreting every unexpected waveform as a mysterious failure of the underlying feedback principle itself.[1][2][3]
Static agreement is not the whole waveform
The familiar virtual-short calculation is often introduced using steady voltages, while a real application may involve changing signals. TI lists bandwidth and slew-rate specifications because dynamic behavior needs its own consideration. A circuit that reaches the right output for a slowly changing input is not automatically suitable for every faster waveform. Keep the signal's required behavior and the device's documented dynamic limits separate from the basic equilibrium calculation. That makes the scope of each conclusion clear without pretending that one number settles all performance questions.[1][2][3]
A useful educational comparison begins with an uncomplicated signal and a supported configuration, then asks what changes when the required operating conditions change. Record the supply, load and signal conditions rather than sharing only an attractive trace. If the behavior differs from the simple model, investigate the assumptions before changing components at random. This article does not establish a complete stability analysis or a measurement procedure. It explains why further analysis is necessary and why a correct first approximation still needs to be checked against the amplifier actually being used.[1][2][3]
Use the shortcut with an exit condition
Before using the near-equal-input approximation, identify the feedback path and the intended operating region. Then calculate the required output and compare it with the selected amplifier's documented capabilities. Check that the intended gain is supported and that the input, output and load conditions are appropriate. If those checks fail, stop using the shortcut for that case. This sequence is more dependable than applying an ideal rule first and treating every practical limitation as an awkward exception discovered only after the circuit has been assembled.[1][2][3]
The most useful way to remember negative feedback is as a corrective process with limits. A small input difference steers the output, the feedback network returns information about that output, and the loop seeks a workable balance. Nearly equal input voltages are evidence of that operation under suitable conditions. They are not a permanent promise made by the op-amp symbol. Once that distinction is clear, followers and other feedback circuits become easier to reason about, and the data sheet becomes part of the explanation rather than a collection of unrelated restrictions.[1][2][3]
