The essential signal
- On-die ECC operates within the DRAM device before data is delivered outside the chip.
- Micron’s described DDR5 code corrects a single-bit error; do not relabel it as universal double-error protection.
- System protection, error reporting, scrubbing and repair are separate questions.

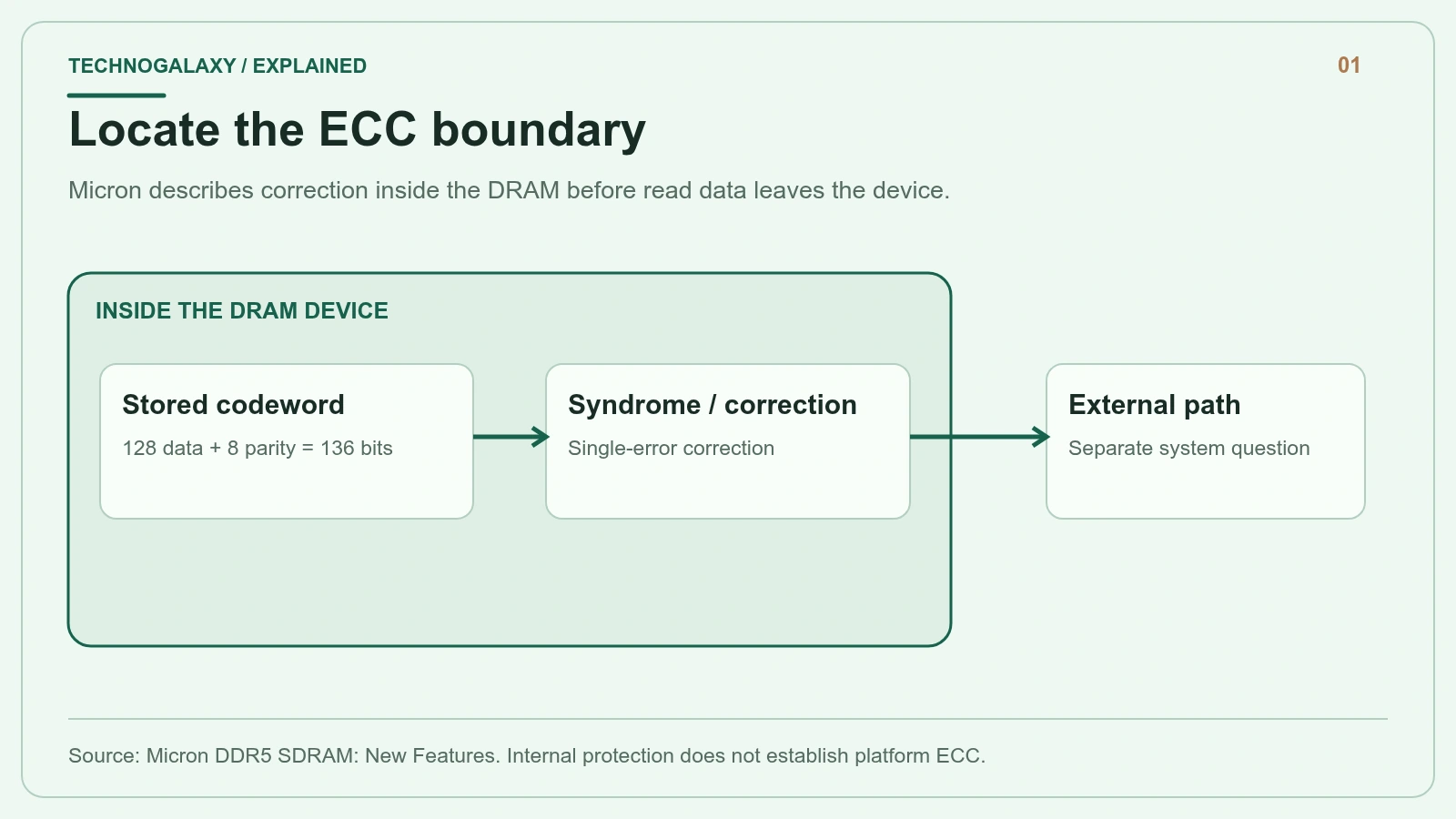

Start by locating the protection
A DDR5 specification that mentions on-die ECC can sound like a complete answer to memory reliability. It is not. The phrase identifies error correction inside a DRAM device, which is one part of a larger system. Micron's DDR5 white paper explains that correction takes place during read operations before data leaves the device. That location is the starting point for understanding what the feature does. It also prevents a chip-level capability from being mistaken for a description of everything between memory storage and the software using the data.[1]
Picture the path in stages: data is stored in a memory array, read inside the device, delivered through an interface and consumed by the wider system. Different checks can apply at different stages. An internal correction mechanism does not by itself describe the protections surrounding the external transfer. When comparing memory products, ask where each advertised feature acts before asking how impressive its name sounds. This article focuses on the mechanism Micron documents, not a claim that every DDR5 platform exposes identical reliability features or management information.[1]
What the codeword adds
Micron describes a codeword containing 128 data bits and eight parity bits, for a total of 136 bits stored during a write. The extra bits provide redundancy used by the error-correction mechanism. On a later read, the device computes a syndrome from that stored codeword and uses it to correct a single-bit error. The important idea is that the stored representation contains more information than the application data alone. The parity bits support a specific correction scheme rather than serving as extra usable memory for the application.[1]
A small conceptual example helps without pretending to reproduce the device's implementation. Imagine storing a message together with check information that lets a reader recognize a limited class of changes. The check information is valuable because it constrains what a valid stored pattern should look like. The actual DDR5 mechanism operates on defined binary codewords, not on handwritten labels attached to a file. Keep the documented codeword size and the stated correction capability together; quoting only the amount of redundancy does not explain what errors the scheme can reliably handle.[1]

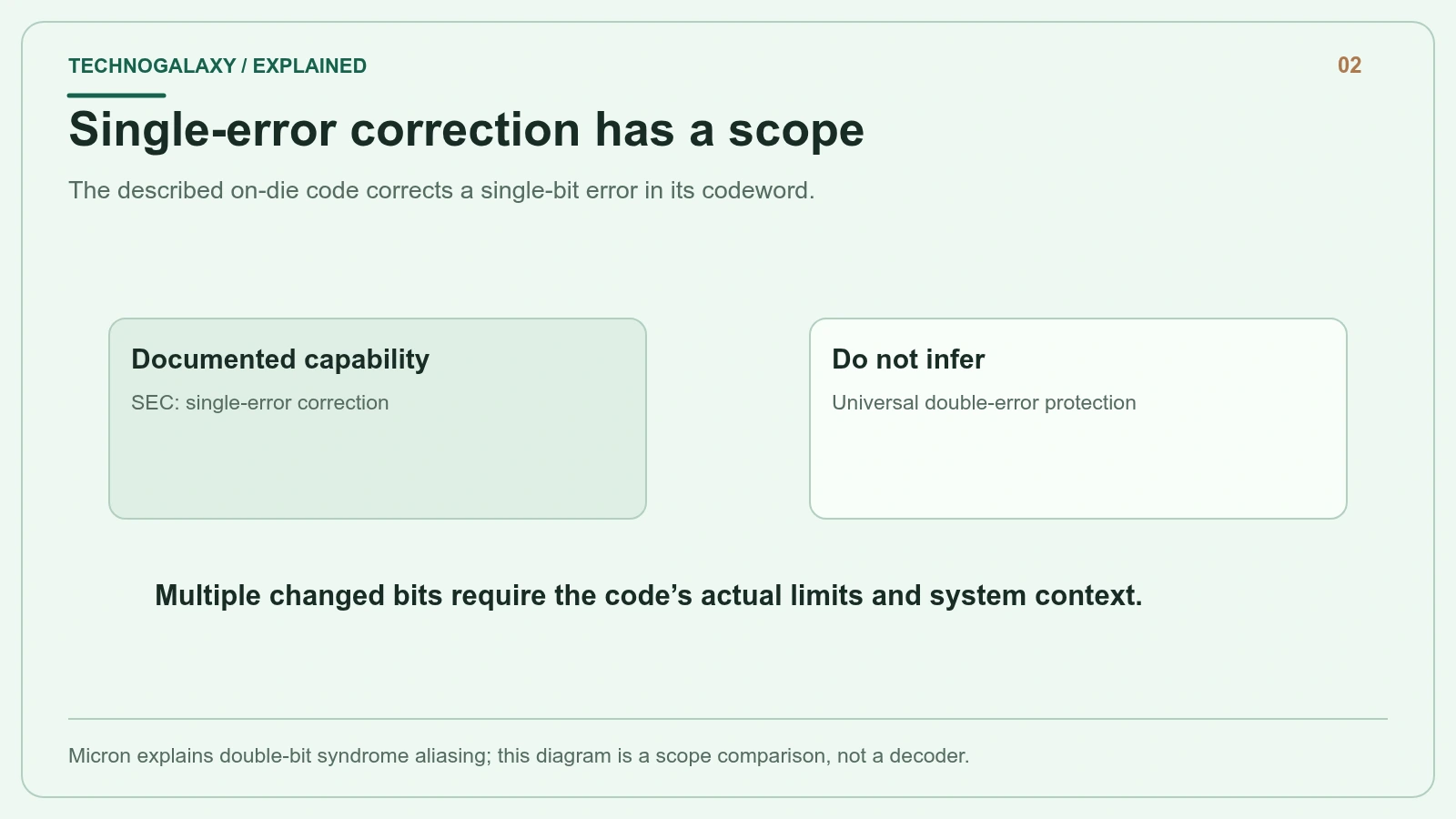

Single-error correction is a precise claim
The white paper calls the on-die scheme single-error correction, or SEC. That wording matters. It identifies a capability under a particular error model, not an assurance that any damaged codeword can be reconstructed. Micron describes a Hamming-code arrangement and explains that the eight parity bits used with 128 data bits do not provide double-bit detection in the way a reader might assume from a broader ECC label. The safe reading is the specific capability in the document, not the most generous interpretation of the acronym.[1]
This is where a short sales description can lose an important qualification. A statement that memory includes ECC does not tell you whether the feature corrects one error, detects another class of errors, protects an external interface or reports useful events to software. Those questions need separate answers. In your own notes, expand the abbreviation into a sentence that names both the mechanism and its scope. That sentence is much harder to misread than an isolated tick in a feature table, especially when comparing unlike kinds of error correction.[1]
Why two changed bits need a different discussion
Micron explains that two error bits can produce a syndrome that aliases to another location in the described on-die code. Its layout is arranged with system-level correction coverage in mind, but that does not turn the internal mechanism into a universal double-error detector. The paper discusses quadrants and how an aliased result can remain visible as a double-bit failure to system-level correction. That is a relationship between layers of protection, not evidence that the layers are identical or that one can always replace the other.[1]
You do not need to memorize the quadrant mapping to retain the practical lesson: error-correction claims depend on the code and the error pattern. Avoid translating single-error correction into a promise about every multi-bit event. Likewise, do not infer that a system-level feature is present merely because an internal device feature exists. A careful technical summary can acknowledge the coordination described by Micron while leaving platform-specific guarantees to the corresponding system documentation. That is more accurate than either dismissing on-die ECC as meaningless or presenting it as complete protection against all memory corruption.[1]
The external path is a separate boundary
On-die correction happens before the corrected read data is output from the DRAM device. A system-level memory-protection arrangement must be understood at its own boundary, including the controller, module and platform support that the system documents. The on-die feature alone does not establish those details. This distinction is the central buying lesson: a statement about what happens inside the chip is not sufficient evidence for what happens along the rest of the memory path, however similar the acronyms may look in a listing.[1]
For a procurement review, write two questions rather than one. First, what internal correction does this memory device provide? Second, what system-level protection does this complete platform support and enable? Obtain the second answer from the platform's documentation instead of inferring it from DDR5 generation naming. This is a review method, not a claim about a particular motherboard or processor. Keeping the questions separate helps you identify missing information before treating a configuration as suitable for a workload whose reliability requirements have not yet been clearly defined.[1]

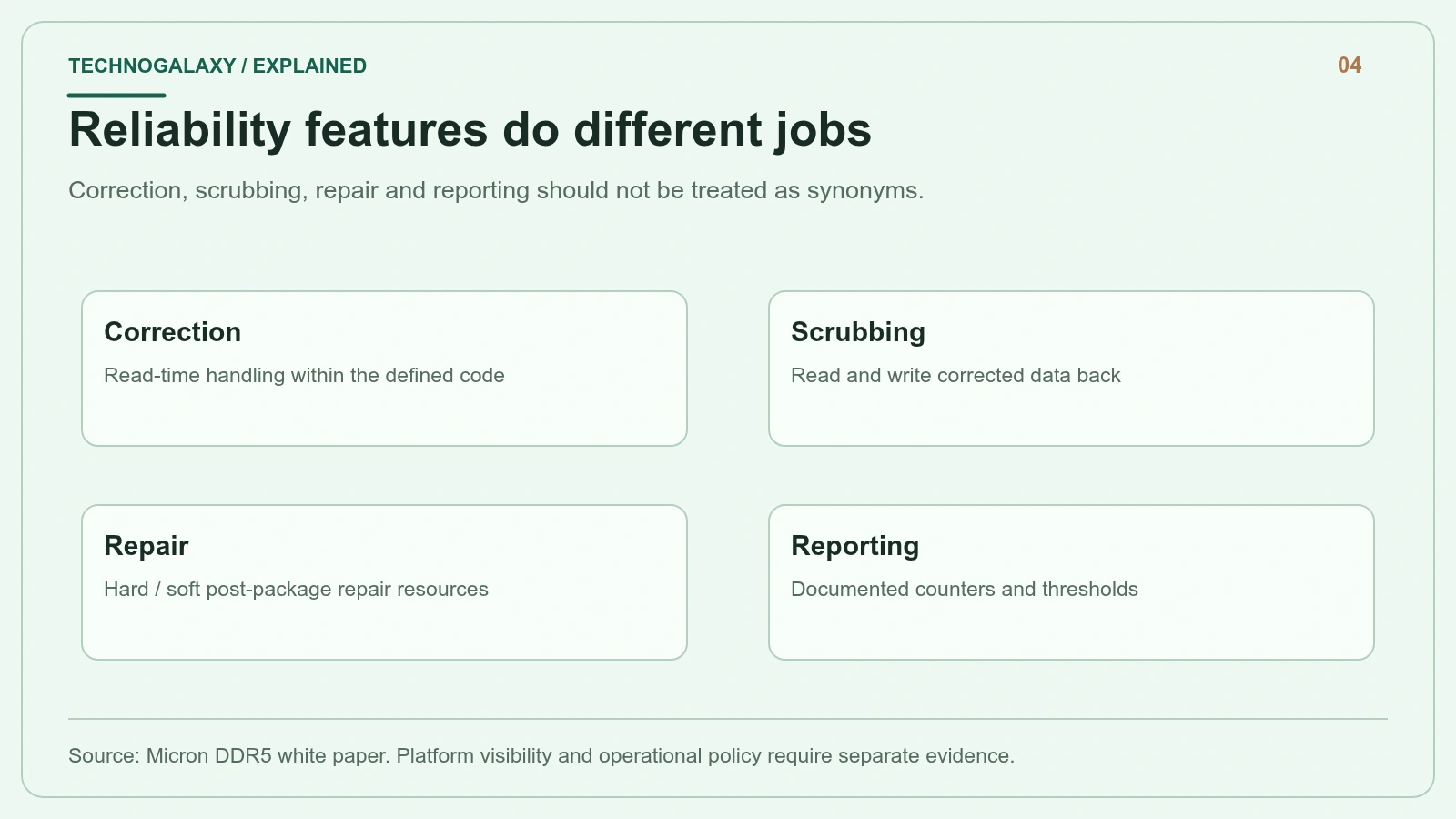

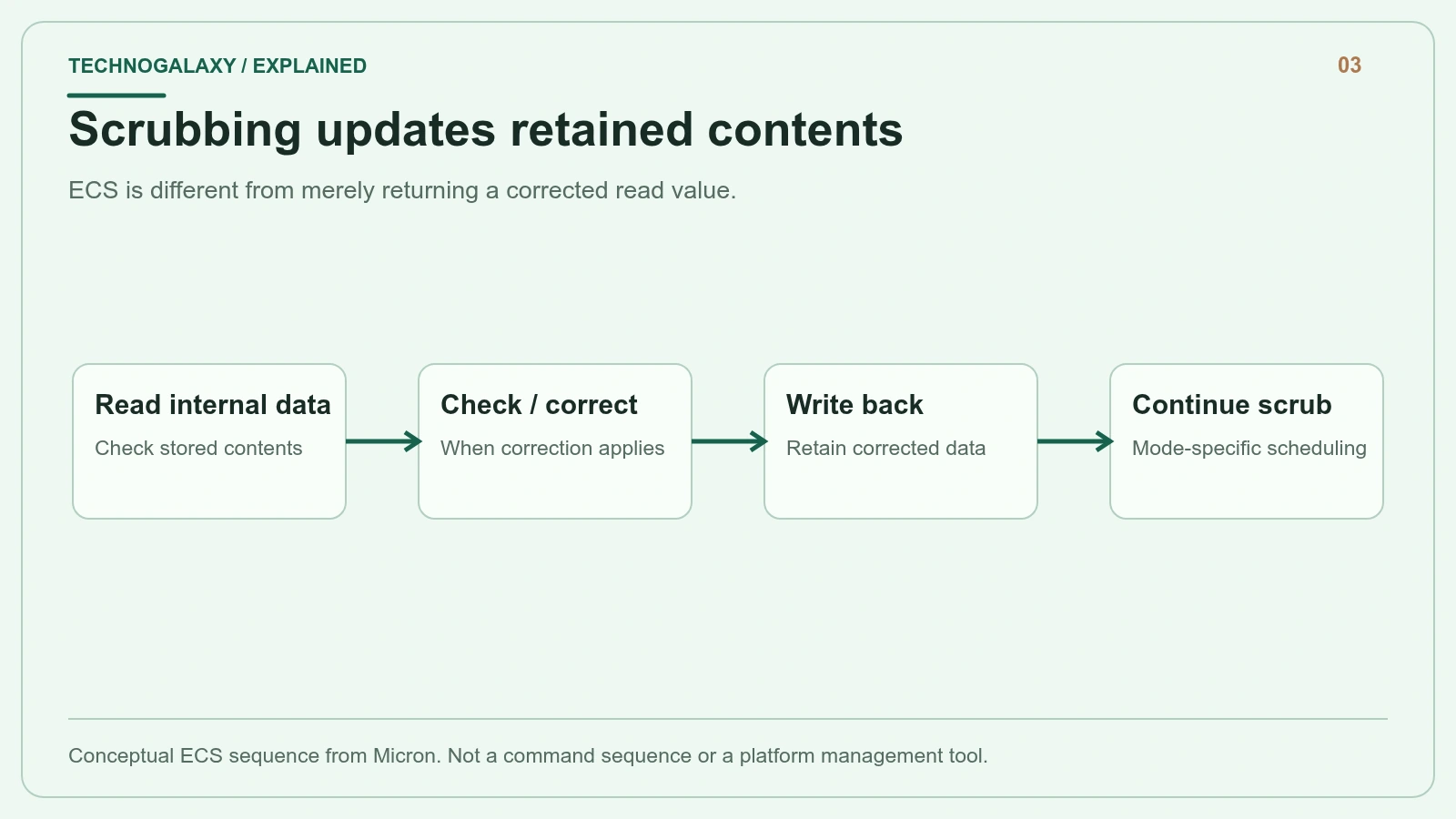

Scrubbing revisits stored data
Micron describes error check and scrub, or ECS, as reading internal data and writing corrected data back when a correction occurs. This is distinct from merely returning a corrected value during a read. Scrubbing concerns the condition of the stored contents over time. The paper describes both a manually initiated mode using a multi-purpose command and an automatic mode in which the DRAM schedules the work. These are mechanisms inside the documented memory design, not a general recommendation to issue undocumented commands on a working computer.[1]
The distinction between correction and scrubbing is useful beyond the acronym. A corrected read supplies a value for that operation; a scrub can also update what remains in the array. When reading a reliability description, ask whether it discusses the immediate read result, the retained contents or both. Do not assume that every feature is equally visible to applications or administrators. How a platform exposes or uses a device capability is a separate implementation question, and the white paper should not be stretched into a complete management manual for a computer it does not describe.[1]
Reporting needs its own interpretation
The white paper describes reporting associated with a completed array scrub, including corrected-error information and the row with the highest error count, subject to minimum thresholds. Those qualifications are important. A reporting mechanism is not necessarily a detailed log of every internal correction presented directly to ordinary application software. If a platform advertises monitoring, investigate what it actually exposes, how the values are interpreted and which events are omitted or aggregated. Do not assume visibility merely because the device has an internal mechanism for collecting information.[1]
For an operational checklist, separate what the device can record from what the system makes available and what an administrator is expected to do with it. An unexplained counter is not yet a maintenance policy. Conversely, the absence of a familiar application-facing message is not enough to establish that no internal correction occurred. This article does not provide a universal error threshold for replacement. It provides a way to read the documentation without confusing an underlying capability, an exposed metric and an organization-specific response to that metric.[1]
Repair is different from correcting a read
Micron also describes post-package repair, divided into hard and soft forms. The paper distinguishes permanent repair from a temporary repair state that does not persist through power cycling. These mechanisms concern repair resources and memory organization, not simply the arithmetic of correcting a codeword during a read. Keeping the categories separate makes a feature list easier to understand: correction, scrubbing, repair and reporting can complement one another, but each term describes a different action with its own scope and implementation details.[1]
The white paper further discusses tracking repair-resource availability. That is useful context when a product document uses reliability, availability and serviceability as a combined theme. It does not mean that every failure can be repaired indefinitely or that software can freely request arbitrary repairs. Read the documented feature as one tool within a particular design. For a system decision, obtain the relevant platform guidance about supported behavior instead of converting a semiconductor capability into a blanket assurance about uptime, recovery or the lifetime of an individual memory module.[1]
Generation changes include more than ECC
DDR5's feature set also includes changes in bank organization, burst length and refresh behavior. Micron discusses these separately from the on-die correction mechanism. That organization is worth following when comparing products: performance-oriented architecture changes and reliability mechanisms should not be collapsed into one claim that a newer generation is better in every respect. A feature's presence tells you what the design supports; it does not supply a measured result for every workload or settle whether a complete platform meets a specific requirement.[1]
If a comparison includes performance figures from a vendor paper, retain the workload and configuration attached to those figures. Do not transfer a simulated result to an unrelated application or present it as a test performed by this publication. For this explainer, the useful outcome is a clearer vocabulary, not a benchmark ranking. The same discipline applies to ECC: preserve the documented boundary and conditions, then ask for evidence relevant to the actual system rather than treating a generation label as a substitute for an engineering comparison.[1]
A better question than “does it have ECC?”
Ask what data is protected, where the code operates, which errors it is specified to handle, what happens when that capability is exceeded and which information reaches the system. Then ask which parts of that answer come from the memory-device document and which require platform-specific evidence. These questions are practical because they turn an ambiguous feature label into a set of checkable statements. They also make it easier to explain why two configurations using DDR5 can still require different reliability evaluations.[1]
On-die ECC is useful precisely because it performs a defined job inside the memory device. Its value does not depend on pretending it performs every other job too. The strongest conclusion from Micron's description is therefore a bounded one: internal single-error correction, scrubbing and repair-related features contribute to the design's reliability story, while system-level protection remains a separate subject. Keep that distinction intact when reading a specification, writing a purchase requirement or explaining memory technology to someone who only sees the acronym on a product page.[1]
Questions, answered.
Does DDR5 on-die ECC prove that a computer has system-level ECC?
No. The internal DRAM feature does not establish the protections or configuration of the complete platform. Check the controller, memory and system documentation.[1]
Does Micron describe its internal code as universal double-bit correction?
No. The cited paper describes single-error correction and explains limitations involving double-bit syndromes. Do not expand that into a broader guarantee.[1]
